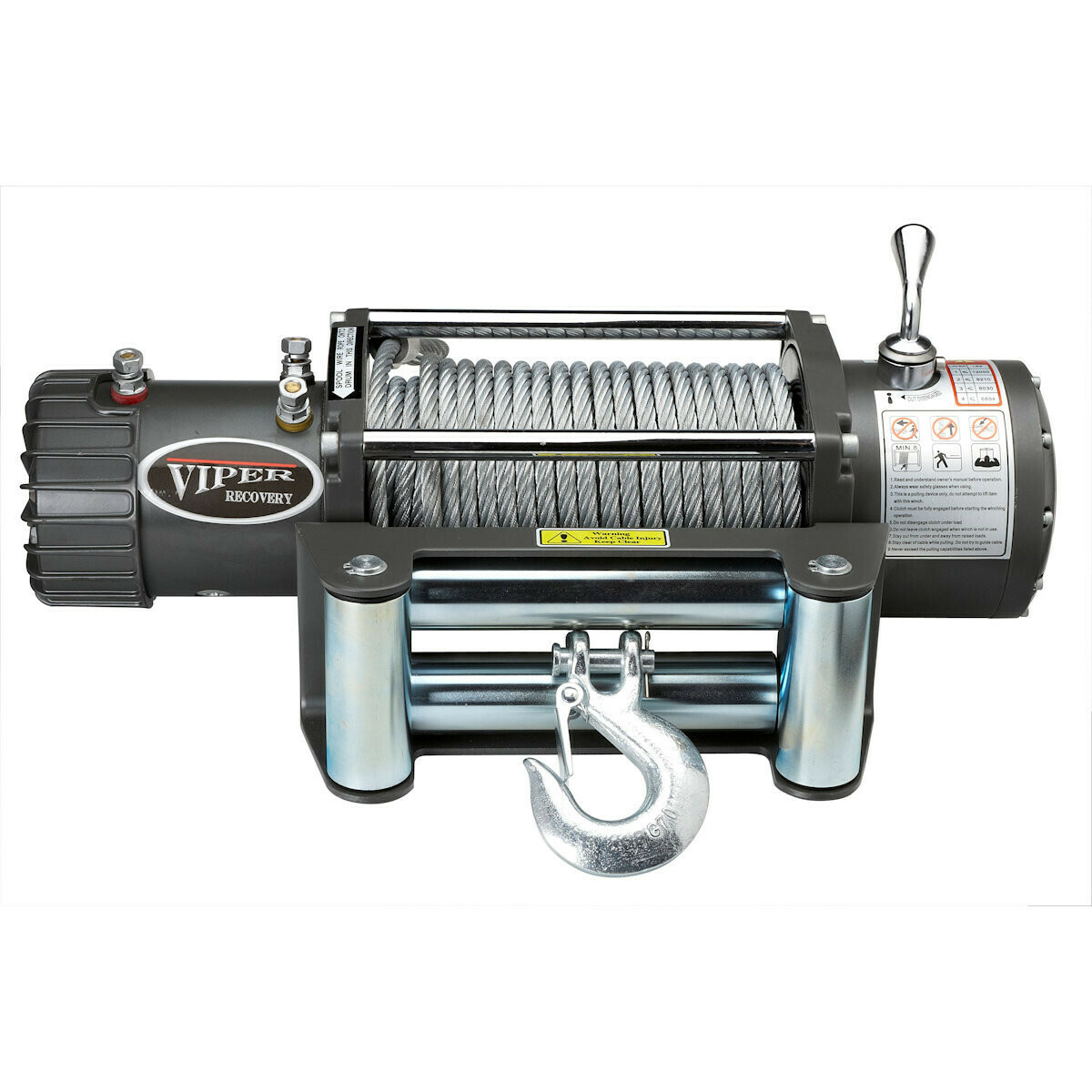

VIPER 13,000lb Recovery 4x4 Truck Winch are perfect when needing a durable winch for Jeeps, Tow Trucks and all Recovery vehicles. Constructed with permanent magnet motors and steel gears, the 13,000 winch delivers a reliable performance that users recognize and trust. Fully sealed with a planetary metal gear train, it is heavy duty and includes all the features and extras that users recognize and trust. Backed by a Limited Lifetime Warranty and toll-free customer service line, this metal bodied winch has a standard mounting bolt pattern of 10″ x 4.5″.
Features:
- Non-Integrated Contactor/Solenoid
- Wireless and Cabled Remotes
- Mounting Bolt Pattern - 10.0″ x 4.5″ (254mm x 114.3mm)
- Limited Lifetime Warranty (winch only) / Rope ( 6 months)
Kit Contents:
- 85' x 3/8" Steel Cable or Synthetic Rope (rope includes 6 month warranty)
- Fairlead - Roller or Aluminum Hawse based on the type of cable
- Non-Integrated Contactor/Solenoid & Wiring
- Wireless Remote Switch
- 11′ Cabled/Tethered Remote Switch
- Damper Blanket
- Winch Cover
- Installation Hardware and Instructions
- Clevis Hook
Specs
- Cable - Steel or BLACK Dyneema
- Motor - 12V DC, 5.5HP / 4.0 KW, sealed permanent magnet
- Rated Line Pull - 13,000lbs (5896.70 kgs)
- Line Speed - 0lbs 31 Amps motor draw / 21.3 FPM (6.49 MPM)
- Line Speed - 13,000lbs 245 Amps motor draw / 4.4 FMP (1.34 MPM)
- Gearing / Gear Ratio - 3-Stage planetary / 265:1
- Brake - Automatic In-the-drum
- Clutch – Sliding Ring Gear
- Wiring - 6ft of 2-gauge (English) / 196.4 (Metric)Wiring
- Dimensions - 21.3″ (L) x 6.3″ (D) x 8.6″ (H) (541mm x 160mm x 218mm)
- Mounting Bolt Pattern - 10.0″ x 4.5″ (254mm x 144.3mm)
MotoAlliance warrants to the original purchaser that VIPER Max 13,000 winch (a) mechanical components will be free of defects in material and workmanship, and (b) electrical components will be free of defects in material and workmanship for a period of one (1) year from purchase.
