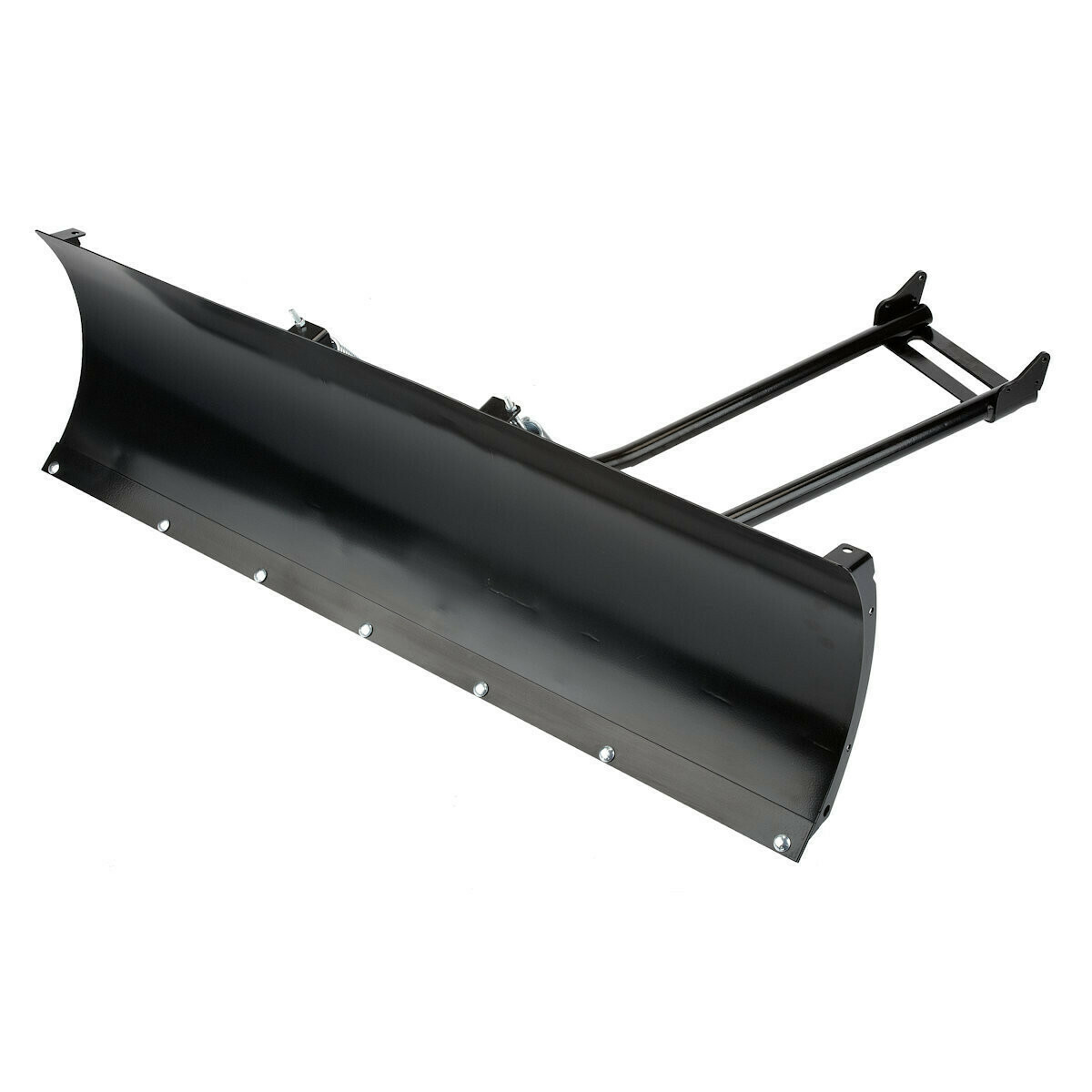

Moto Alliance Denali ATV Standard Series Plow Kit

DENALI Standard Series ATV Snow Plows are made to handle the toughest conditions including sand, snow, and ice. The "Easy-Connect" design created by MotoAlliance engineers makes attaching and detaching the plow an extremely easy process. This Center Mounted plow disperses the force of impact to the sturdiest part of the ATV, preventing damage to the front end or other vehicle parts from sudden impact.

Please Note: A Denali ATV specific Plow Mount will need to also be purchased.

Please Note: All DENALI ATV Plow Systems require a winch (not included) to raise and lower the plow blade.

Kit Contents:

• ATV Snow Plow Blade - Straight
• ATV Pushtubes
• Two (2) Wearbars [60″ blades]; One (1) Wearbar [50″ blades]
• Skid Feet
• Installation Hardware and Instructions

• Snow plow blade (17 inch scoop) and leading horizontal supports are formed from a single piece of 11 gauge steel
• Four 7 gauge ribs run the full height of the blade
• Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
• 65° attack angle and over center design ensures snow rolls up and is thrown forward
• 7 gauge, Grade 50 steel wear bar(s) included with every kit
• Height and angle adjustable skid feet included
• 3 Year Warranty

• Features
  • Upgraded (stiffer) rubber flap
  • Stainless steel base on markers
  • Flexible to -50° F (markers)
  • Highly visible orange color
• Kit Contents
  • One (1) rubber flap
  • One (1) metal hold down bar
  • Two (2) plow markers/flags
  • One (1) standard spool plow roller
  • One (1) sheave (pulley, 1/4″ clevis hook, nylon strap)
  • One (1) plow cable
  • Installation hardware

Plow Pulley Fairlead Features:

• Roller
  • Replaces the winch fairlead during the plow season
  • For use with Steel AND Synthetic cables
  • Curved cable groove helps eliminate flattening and breaking of cable
  • Bolt Patterns:
  • Standard Spool: 3″ x 4.875″
  • Wide Spool: 3" x 6.67″
• Sheave
  • Includes pulley, 1/4″ clevis hook and nylon strap
  • Allows greater precision when raising/lowering plow blade and increases the angle of pull
• Cable
  • 12′ length, 1/4″ diameter
  • Single braid, dyneema rope with galvanized steel thimble/eyelet
